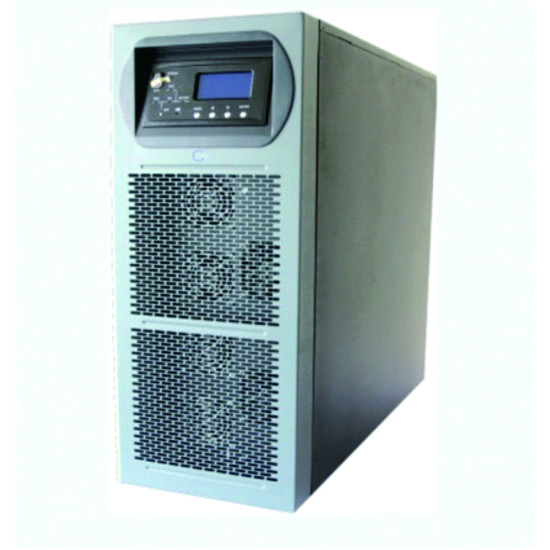

SR40 Plus [40 KVA/36 KW]

Model:SR40 Plus, Capacity:40 KVA / 36 KW, Rated input voltage:380V - 400V - 415V, 3 phase + N, Input voltage window:304V - 478V (line to line), 228V - 304V (line to netral), Rated input frequency:50Hz / 60Hz, Frequency window:40Hz - 70Hz (Adjustable), Input THDi/ pf:< 3% (linear load) / > 0.99, Rated bypass voltage:380V - 400V - 415V, 3 phase + N, Bypass voltage window:Default - 20%, + 15%, Rated bypass frequency:50Hz / 60Hz, Bypass frequency window selectable:+/-1Hz, +/-3Hz, +/-5Hz, Bypass overload capability:up to 125% cont, 130%-10min, 150%-1min, >=150%-200ms, Battery:VRLA, AGM, SLA, GEL, NICAD, Voltage output 380V - 400V - 415V, 3 phase + N, Ouput power factor:0.9, Voltage stability:<1% at linear load, <6% full non-linear load, Frequency stability:50Hz / 60Hz +/- 0,1%, Crest Factor:3 : 1, Overload capability:110%-60m, 125%-10min, 150%-1min, >=150%-200ms, System Efficiency:95% Online mode, Display Interface:Push button, LCD, LED, External interface:RS232; RS485. Option SNMP, dry contact, parallel, Operating & storage temperature:0 C - 40 C, Relative humidity:Up to 95% non-condensing, Sound Pressure 1m:< 60 db, Size unit:250 x 833 x 750 mm, Weight:61 Kg, Mechanical protection:IP20, Backup time:+/- 10 minute, Cable:I/O dan grounding 10m, Warranty:1 year
