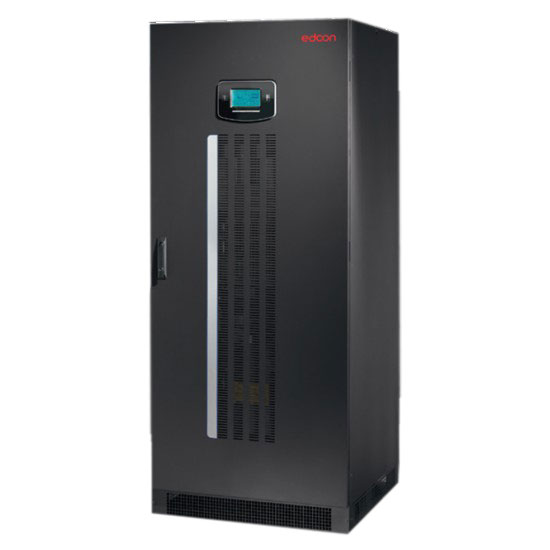

MPT200 (200 KVA / 180 KW, Backup time 30 minute)

Model: MPT200; Capacity: 200 KVA / 180 KW; Rated input Voltage (V): 380-400-415 VAC, 3 Phase + N; Voltage tolerance - Input: +20%, -25%; Frequency - Input: 45/65 Hz; Power factor - Input: > 0.96; Input THDI: <= 3% (linear load) / 0.99; Nominal voltage - Output: 380-400-415 VAC, 3 Phase + N; Battery: VRLA, AGM, SLA, GEL, NiCd; Ouput power factor: 0.9; Static stability: +- 1%; Voltage distortion with linear load: <= 1%; Voltage distortion with distorting load: <= 3% (according to IEC62040-3); Dynamic variation: +- 5%, in 20 msec to class 1 of EN62040-3; Frequency: 50/60 Hz auto sensing with default +- 2%; Wave form: Pure sinusoidal; Crest factor: 3/1; Overload capability: 100% for 60 minutes, 125% for 10 minute, 150% for 1 min; Remote command: EPO and Bypass; Efficiency smart mode: Up to 98%; Operating & storage temperature: 0C - 40C; Noise level: 60 to 68 db @1m; Dimension: 800 x 800 x 1900 mm; Index of protection: IP20; Weight: 790KG; Commmunication: Double RS 232 + Remote Contac + 2 Communication Interface slot; Relative humidity: <= 95% non condensing; Galvanic Isolation transformer: built-in; Backup time: 30 minute; Include: Kabel Input/Output 10m, Kabel grounding 10m; Warranty: 1 year; Manufacture : Italy; (KD1061)
